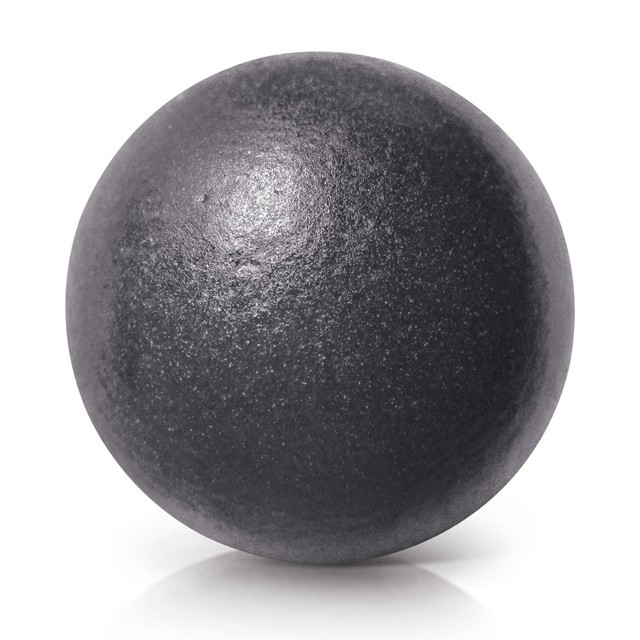

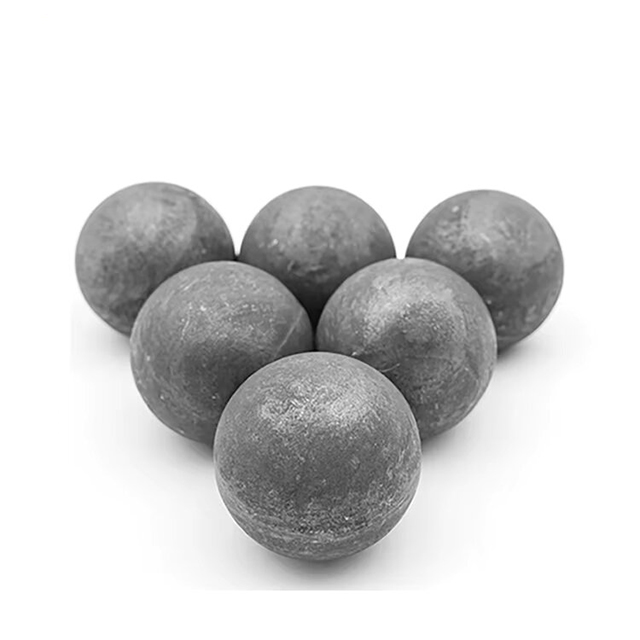

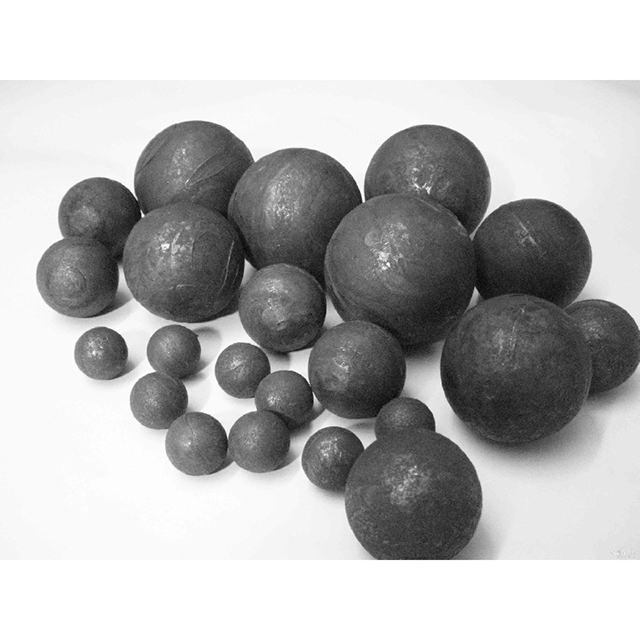

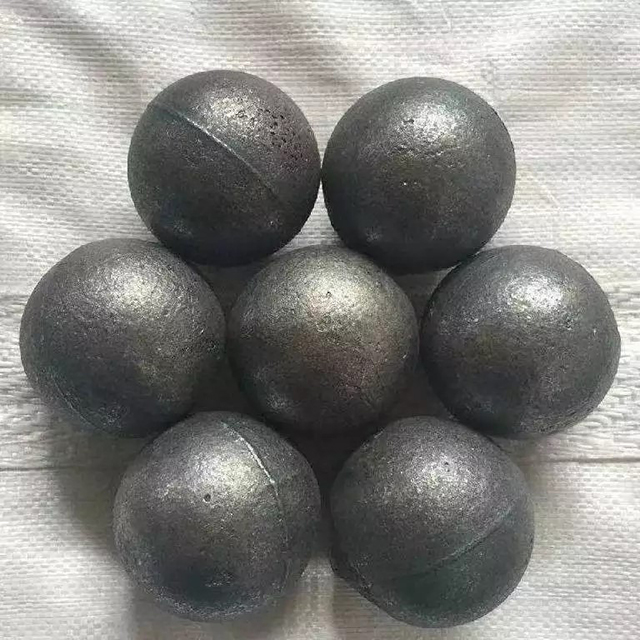

Grinding Steel Balls

Our grinding steel balls are widely used in the further processing of cement, building materials, metal mines, coal slurry thermal power, chemical industry, ceramic coatings, light industry, papermaking, ultrafine powder preparation, magnetic materials and other industries, and it has been exporting to more than 50 countries. We have passed ISO, SGS and such certificates. Ans our grinding steel balls feature high hardness, low wear, good toughness and less breakage.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model NO.	17-165	Usage	Grinding
Processing Type	Rolling Type	Size	10-165mm
Transport Package	Ton Bags or Steel Drums	Certification	ISO9001, SGS
HS Code	732611	Production Capacity	100000 Tons/Year

Chemical Components

Type	Chemical Components
Type	C	Mn	Si	Cr	S	P
45#	0.42-0.48	0.50-0.80	0.17-0.37	≤0.25	≤0.035	≤0.035
50Mn	0.48-0.56	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.70	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
B2	0.75-0.85	0.70-0.90	0.17-0.37	0.40-0.60	≤0.030	≤0.030
B3	0.55-0.65	0.75-0.90	0.20-0.37	0.85-1.20	≤0.030	≤0.030
B4	0.58-0.66	0.65-0.80	1.60-1.90	0.70-0.90	≤0.030	≤0.030
B6	0.97-1.03	1.00-1.10	0.20-0.30	0.50-0.60	≤0.025	≤0.025

Mechanical Properties

Material	Hardness (HRC)						Impact	Falling Times
	Φ20-Φ50		Φ60-Φ90		Φ100-Φ150
	Surface	Core	Surface	Core	Surface	Core
45#	≥54	≥36	≥54	≥34	≥52	≥30	≥15	≥22000
50Mn	≥58	≥38	≥58	≥36	≥55	≥32	≥15	≥22000
60Mn	≥60	≥42	≥60	≥40	≥58	≥36	≥15	≥22000
65Mn	≥60	≥42	≥60	≥40	≥58	≥36	≥15	≥22000
B2	≥60	≥60	≥60	≥50	≥60	≥46	≥15	≥22000
B3	≥60	≥60	≥60	≥50	≥60	≥48	≥15	≥22000
B4	≥60	≥60	≥60	≥55	≥60	≥52	≥15	≥22000
B6	≥60	≥60	≥60	≥59	≥60	≥55	≥15	≥22000

Note: Other specifications can be made according to customers' requirements.
